3-axle van body closed cargo truck semi-box trailer

3 Axle Van Body Enclosed Cargo Transport Truck Semi Box Trailer1.product picture 2.product specificationsize12500x2500x4000mmpayload50ton tare weight 9000kgaxle3x13ton/14ton/16ton/20ton   brand can be opentional suspension mechanical suspension/air suspension/american type/g

Featured Products

3 Axle Van Body Enclosed Cargo Transport Truck Semi Box Trailer

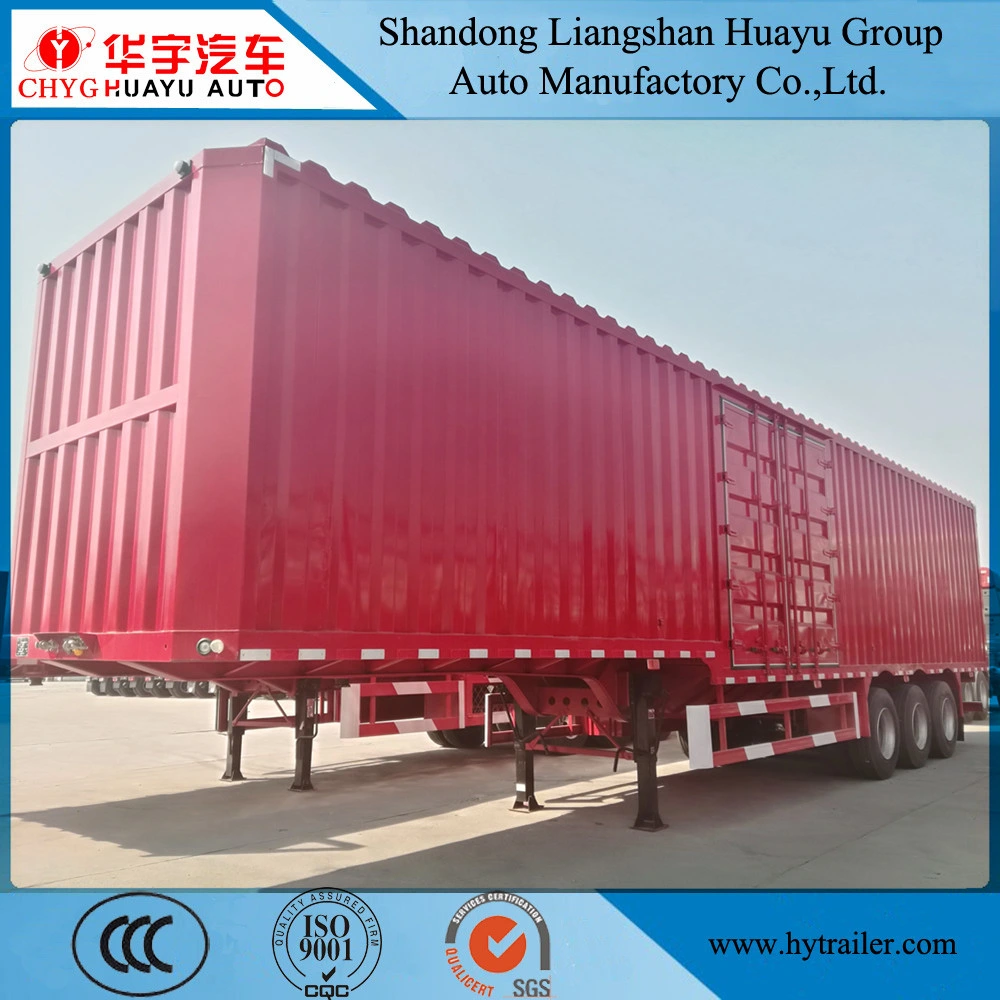

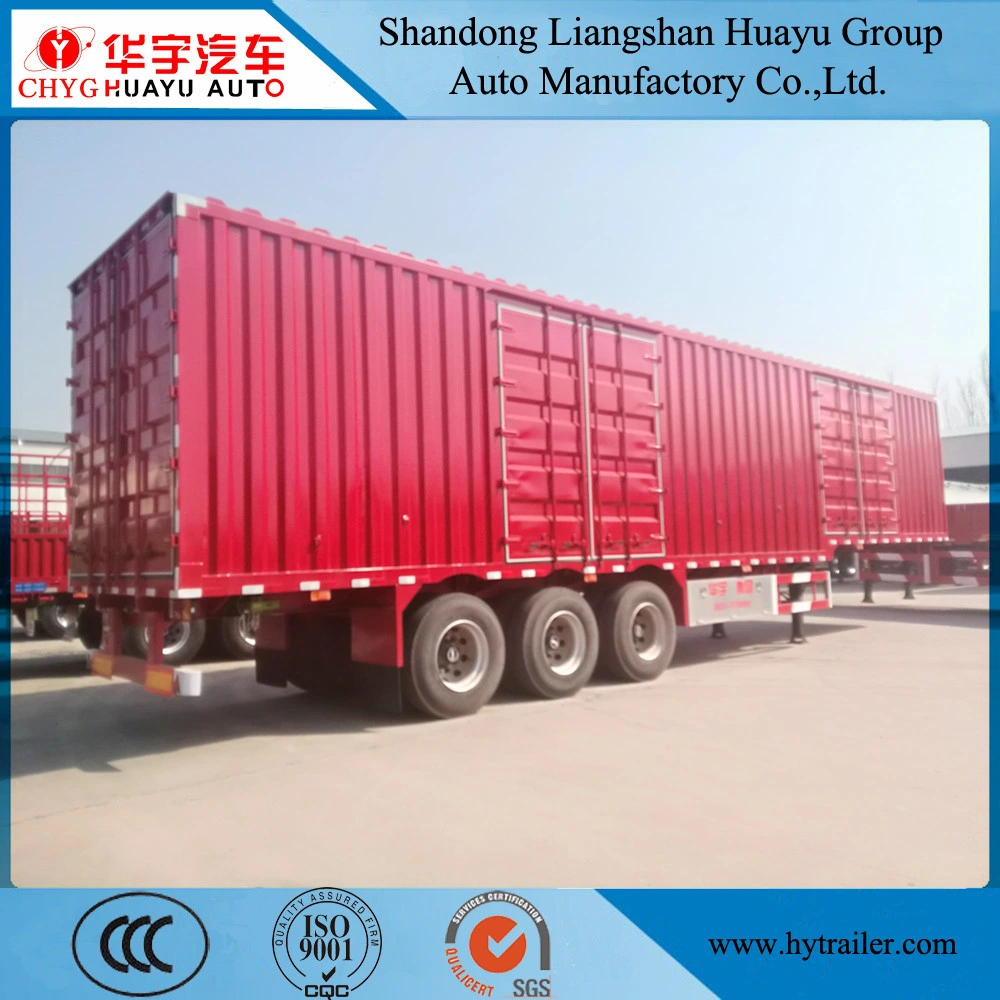

1.product picture

3 Axle Van Body Enclosed Cargo Transport Truck Semi Box Trailer

2.product specification
tare weight 9000kg
axle3x13ton/14ton/16ton/20ton   brand can be opentional
suspension mechanical suspension/air suspension/american type/germany type can be opentional
tire11R22.5/12R22.5/11.00R20/12.00R20    brand can be opentional
wheel rim8.25/9.0/8.0/8.5
kingpin 2"/3.5"
I  beam up:14mm;bottom:16mm;middle:8mm;height:500mm;width:140mm:material:Q345B
landing gear jost c200 /fuwa  two speed 28ton
floor/side board3mm checkered plate/600mm;800mm;1000mm board opentional
twist lock 12pcs use for 1x40ft  or 2x20ft (opentional)
spare tire carrier 2 pcs
tool box1 or more can be opentional
air wiring doule air line ;
electricity wiring 6 core wiring;24v or 12v ;LED lamp;
brake system wabco relay valve;drum brake;t30/30 brake chamber
paiting complete chassis sand blasting;electrophoresis coating;1 coat of anticorrosive prime;
2  coats of final paiting
colour opentional
accessories brake shoe;spare tire cranking;shaft head wrench;jack 50ton;tire bolt;lamp

use the plasma cutting machine cut the steel to little parts use for suitable welding and splicing
after steel cutting process the next step is welding .this process the main work is beam welding .the top plate-bottom plate and the middle  plate  will  be welding together .  this process will be use submerged arc welding process.this type of welding is very special .its exclusively used in I beam welding .after this welding process other parts of the trailer will be use different welding way for different steel-argon arc welding-electric arc welding-manual welding-gas welding and so on
this process is use for the first step of surface cleanness-stress relief-derusting before paiting .
4)electrophoresis coating
this process use for more detail surface cleanness
5)epoxy zinc primer spray coating
this process is the lasting one before paiting .after this process the trailer an be paiting
after all the process we have mationed .the last procedure of the trailer is assembly.this process all the parts will be assemly .it including tire-wheel rim-king pin-landing gear-suspension-spring leaf -brake chamber-air wiring-electricity wiring-brake system and so on

The last process is packing .all the trailer use different packing way as customer requirment.after packing the trailer can be on the way to the customer

3 Axle Van Body Enclosed Cargo Transport Truck Semi Box Trailer

1)if welding line should be beautiful and strong.this process will be checking by the quality inspector of factory
2)surface should be clean and looks beautiful.
3)brake system should be adjust before the product leave the factory
4)lamp should my checking before leave the factory
5)all the parts should be reinforce .especially the bolt shoule be more reinforce before the produce leave the factory
3 Axle Van Body Enclosed Cargo Transport Truck Semi Box Trailer


1)civil servant worker before the year of 1990.
2.laid-off workers after the year of 1990
3)steel business after the year of 1990
4)build semi trailer factory after the year of 2000
5)peoples congress (NPC  member) in the year of 2005
6)export business after the year of 2008 and NPC member .in the meantime meet the chainman Jinping Xi

3 Axle Van Body Enclosed Cargo Transport Truck Semi Box Trailer
1)why you will select huayu trailer ?
because we pay more attention to our customer requirment.we produce as the customer requirment completely
2)what superiority huayu trailer have ?
good quality-good after-sales service-good cost performance.we are not the best but we will do our best to service for you

3)what product huayu can supply?
big trailer company not only have superiority product .our product is diversity

3 Axle Van Body Enclosed Cargo Transport Truck Semi Box Trailer

 3 Axle Van Body Enclosed Cargo Transport Truck Semi Box Trailer
