Boyang High Efficient Tube Chain Conveyor, Drag Chain Conveyor

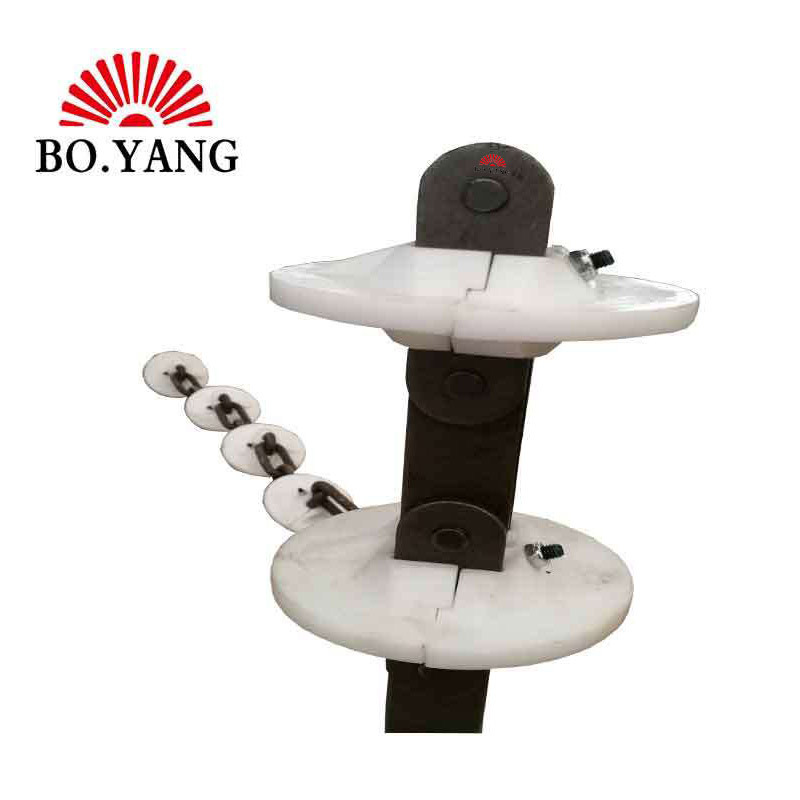

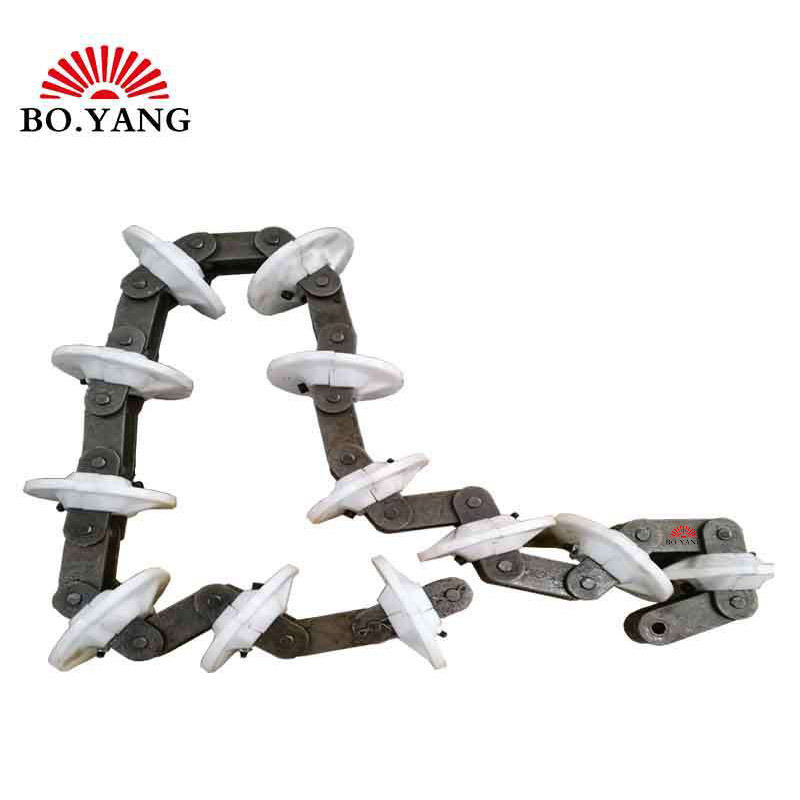

Pipe-chain conveyor is used for conveying material of powder and small lump materials.In a closed tube the chain as drive component to convey the material flow in the tube.when use horizontal conveying the material can bear the thrust from moving direction.when the friction of the material layer is bigger than the friction between material and the outer wall,the material move forward along the chains and form a stable stream;when use vertical conveying,material particles was subjected upward thrust from the chains.Because the lower feeding material is prevent the material flow down so that generate lateral pressure,which enhance the internal friction of the material .when the internal friction of the material is greater than the friction between outer material and inner wall of tube the material will be conveyed with the chains and form continuous material stream .
1.Compact structure,can change the three-way transport direction.
2.Fully enclosed transport,no dust spills,clean and environmentally fiendly.
3.The lower energy consumption,maximize reducing operating costs.
4.The maximum level conveying distance is 60meters and a maximum lifting height of 40meters.
5.No dead zone in the pipe.
6.No metal friction,the maximum reduce noise .
7.Lower maintenance cost.
8.Long service life.
9.Explosion-proof design and airtight design .
10.Can start with load.
11.The maximum guarantee the integrity of the mate.
|Model||Capacity(m³/h)||Chain Wheel Speed(r/min)||Chain Plate Speed(m/s)||Motor powder(kw)|
Fine Chemicals: pigments, dyes, paints, carbon black, titanium dioxide, iron oxide, ceramic powder, light calcium, bentonite, zeolite, kaolin, silica powder, activated carbon, etc.
Pesticide Mineral: urea, ammonium chloride, ammonium bicarbonate, baking soda, solid pesticides, tungsten powder, pesticide chemicals, copper powder, coal, phosphate rock powder, alumina powder
Building materials: cement, clay, sand, quartz sand, clay powder, silica, limestone, dolomite flour, wood flour, glass fiber, silica, talc, etc.
Food industry: flour, starch, grain, milk, and food additives.
