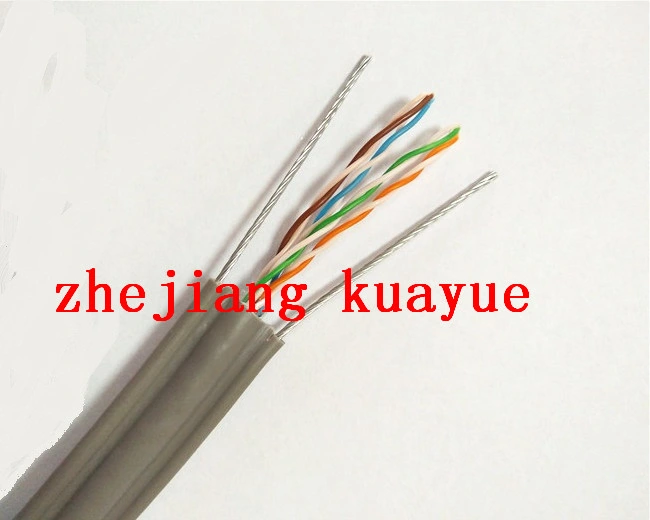

elevator cat5e
Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.
Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
Contact:
Name: Carey zhu Tel:+8657163808897 Mob:13958125576/18758199048
Website: http://kuayuecable.en.made-in-china.com http://kuayuecable.en.made-in-china.com
| UTP CAT 5E LSOH | ||||||
| Product Name/Code : UTP Cat 5E LSOH | Performance | |||||
| Frequency | RL | Attenuation | NEXT | PSNEXT | ||
| Application: | (MHz) | (dB) | (dB/100m) | |||
| 100 Base-T4 | min. | max | (dB) | (dB) | ||
| 100 Base-TX | 0.722 | 22.60 | 1.82 | 67.00 | 64 | |
| 100VG - AnyLAN | 1.000 | 20.20 | 2.00 | 65.30 | 62.3 | |
| 1000 Base-T (Gigabit Ethernet) | 4.000 | 23.00 | 4.10 | 56.30 | 53.3 | |
| 155 Mbps ATM | 8.000 | 24.50 | 5.80 | 51.80 | 49.8 | |
| 622 Mbps AT | 10.00 | 25.00 | 6.50 | 50.30 | 47.3 | |
| Reference Standard | 16.00 | 25.00 | 8.20 | 47.30 | 44.3 | |
| EIA/TIA 568B & ISO/IEC 11801 | 20.00 | 25.00 | 9.30 | 45.80 | 42.8 | |
| Cable Construction | 25.00 | 24.30 | 10.4 | 44.30 | 41.3 | |
| Conductor | Solid Bare Copper | 31.25 | 23.60 | 11.70 | 42.90 | 39.9 |
| AWG | 24 | 62.50 | 21.50 | 17.00 | 38.40 | 35.4 |
| Conductor Diameter(mm) | 0.5 | 100.00 | 20.10 | 22.00 | 35.30 | 32.3 |
| Insulation | Solid PE | Frequency | ELFEXT | PSELFEXT | ACR | |
| Average Thickness (mm) | 0.2 | (MHz) | ||||
| Insulation Dia.(mm) | 0.95 | (dB) | (dB) | (dB) | ||
| 0.722 | 66.00 | 63.00 | 65.00 | |||
| Sheathing | LSOH /LSFROH | 1.000 | 63.8 | 60.8 | 63.30 | |
| Thickness(mm) | 1.35 | 4.000 | 51.7 | 48.7 | 52.20 | |
| Diameter(mm) | 5.2 | 8.000 | 45.7 | 42.7 | 46.00 | |
| 10.00 | 43.8 | 40.8 | 43.80 | |||
| Core Identification /Color Code | According to customer request | 16.00 | 39.7 | 36.7 | 39.10 | |
| Bending Radius | 6xOverall Diameter | 20.00 | 37.7 | 34.7 | 36.50 | |
| 25.00 | 35.8 | 32.8 | 33.90 | |||
| 31.25 | 33.9 | 30.9 | 31.20 | |||
| Fire Performance | 62.50 | 27.8 | 24.8 | 21.40 | ||
| Flame propagation Test to IEC 60332 Part 1(LSOH) Flame Propagation Test to IEC 60332 Part 1 and Part 3(LSFROH) Emission of Halogen Acid Gas to IEC 60754 Part 1 Smoke Emission Test to IEC 61034 | 100.00 | 23.8 | 20.8 | 13.30 | ||
| Electrical Performance | ||||||
| Max.Conductor DC Resistance at 20 ºC(Ω/Km) | <93.8 | |||||
| Operating Temperature | 70 ºC | |||||
| Velocity of propagation | 68% | |||||
| Impedance(ohm) | 100±15 | |||||
