High-speed coaxial manufacturer Rg59 coaxial cable CCTV thin conjoined cable Rg59 2c power cord

 Detailed Photos CCTV CABLE RG59 with Power Construction: Product Parameters Product Specification

Featured Products

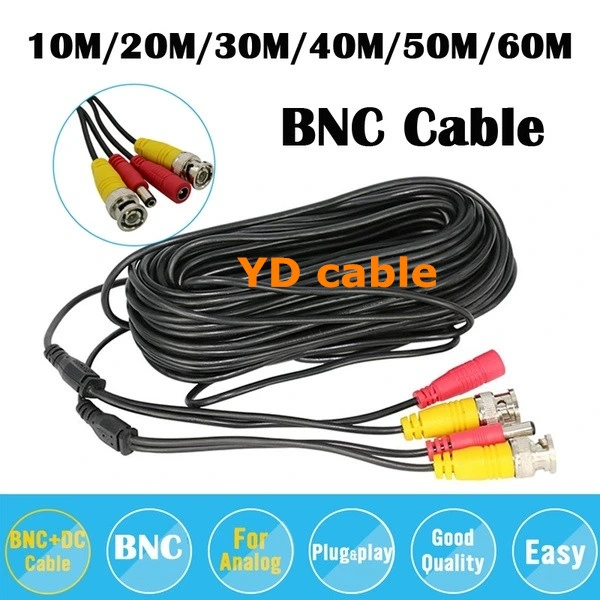

Detailed Photos




CCTV CABLE RG59 with Power Construction:

High Speed Coaxial Manufacturer Rg59 Coaxial Cable CCTV Thin Siamese Cable Rg59+2c Power Cable
High Speed Coaxial Manufacturer Rg59 Coaxial Cable CCTV Thin Siamese Cable Rg59+2c Power Cable


High Speed Coaxial Manufacturer Rg59 Coaxial Cable CCTV Thin Siamese Cable Rg59+2c Power Cable
High Speed Coaxial Manufacturer Rg59 Coaxial Cable CCTV Thin Siamese Cable Rg59+2c Power Cable






Product Parameters





Product Specification

0.64Cu/CCS+3.66SPE+90%Braiding Coverage+6.0PVC+0.5mm2 power/0.75mm2  power
0.81Cu/CCS+3.66FPE+Bonded foil+90% Braiding Coverage+6.0PVC+0.5mm2 power/0.75mm2  power

Description for RG59 with power cable
Mainly used for the distribution and access of electronic communication equipment, RF transmitter unit of
communication system, building cabling and CATV; the most striking features are broadband and high
speed; currently, also widely used in the multimedia transmission field; conforms to RG59.

Features

Specificaitons
Physical dimensions
componentStandard-shieldTri-shieldQuad-shield
inchsmminchsmminchsmm
Nominal center conductor diameter0.0320.810.0320.810.0320.81
Nominal diameter over dielectric0.1443.660.1443.660.143.66
Nominal diameter over first shield0.1513.840.1513.840.1513.84
Nominal diameter over jacket0.246.10.246.10.2656.73
Nominal jacket wall thickness0.030.760.0320.810.0340.86
Nominal diameter of0.051(single)1.30.051(single)1.30.051(single)1.3
steel messenger0.072(dual)1.830.072(dual)1.830.072(dual)1.83
Electrial Characteristics
Nominal impedance75ohms
Nominal Velocity of propagation0.85
Attenuation(20ºC)
Frequency(MHz)Maximum(dB/100ft)Maximum(dB/100m)
552.056.73
2113.812.47
3504.815.75
4505.417.72
5505.9519.52
7506.9722.87
8657.5224.67
10008.1226.64



Related Hot Models


High Speed Coaxial Manufacturer Rg59 Coaxial Cable CCTV Thin Siamese Cable Rg59+2c Power Cable
https://eastcable.en.made-in-china.com/product/lsRxCrbvANha/China-Rg59-2c-Coaxial-Cable-for-CCTV-Camera-Satellite-TV-with-CE-RoHS-Standard-BNC-and-DC-Connector.html


Company Profile





Manufacturer Introduction

Hangzhou Yidu Import & Export Co.,Ltd is one of the leading manufacturer in the cables
and telecom accessories.  We have more than 15 years experience in this line.

Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give
best service to our clients and the quality guarantee in every order.

Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.

We have established a close relationship with many companies around the world and we sincerely look
forward to woking with all clients from all over the world.

OEM and ODM order highly welcome !

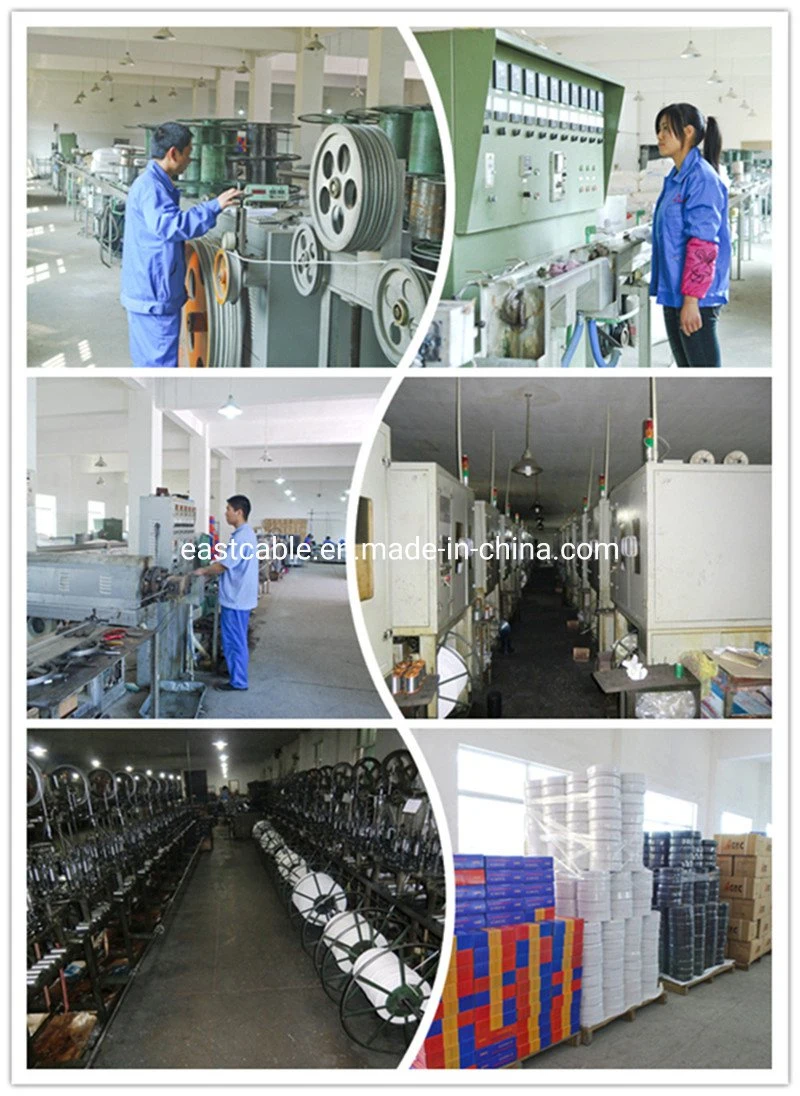

Workshop and Company Show
