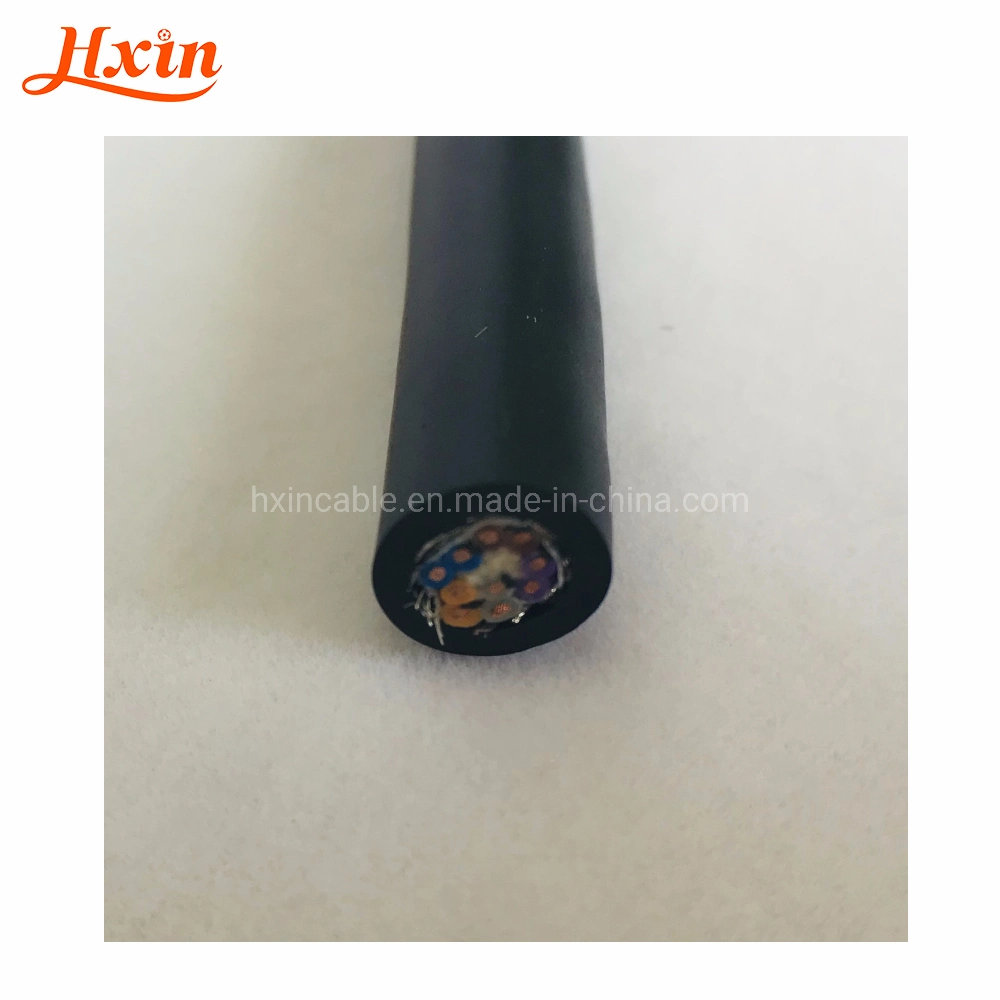

Flex-Trvvsp core wire 5*2*0.35 high-speed driving flexible towline cable cable robot cable oil-resistant, cold-resistant, flexural and torsion-resistant

Product Description Conductor :Particularly high-flex design made of free-Oxygen copper wires according to VDE0295 CLASS 6                                                  &nb

Featured Products

Flex-Trvvsp Cores 5*2*0.35 High-Speed Travelling Flexible Drag Chain Cable Electric Cable Robot Cable Oil and Cold Resistant Bending and Torsion Resistant
Product Description


Conductor :Particularly high-flex design made of free-Oxygen copper wires according to VDE0295 CLASS 6
 Conductor insulation: High quality imported PVC
 Color:  Option

Core wire structure:anti twist layered, or grouping with divided gap filling by high strength core

Twist pair:each 2 wires twisted together
 Inner Sheath: Polyested tape or non woven fabric  fabric

Shield:  Braid made of tinned copper ,cover above 70%
OuterJacket:  Special  high-qualityPVC
Jacket color:Black/Grey/Orange

Flex-Trvvsp Cores 5*2*0.35 High-Speed Travelling Flexible Drag Chain Cable Electric Cable Robot Cable Oil and Cold Resistant Bending and Torsion Resistant

Technical parameter


rated voltage:<0.5mm2:300/300V ≥0.5mm2:300/500V
test voltage: 2000V
minimum bending radius: Fixed installation:6×D
 Movable installation:distance of travel <10m,minimum bending radius 8×D
                                        distance of travel ≥10m,minimum bending radius 10×D

Application temperature:Fixed installation:-30ºC-+70ºC movable installation;-20ºC- +70ºC
Flame resistance:following IEC60332-1-2+EN60332-1-2

characteristic
1.Laying stroke:50m, accelerated speed:20m/s2,travelling speed:5m/s
2.Life of bending>300 0000 times
3.water resistance,oil resistance,UV resistant,abrasion resistance,cold resistance,weatherability.electromagnetic immunity.
With higher acceleration and stronger torsion than standard flexible cable
Flex-Trvvsp Cores 5*2*0.35 High-Speed Travelling Flexible Drag Chain Cable Electric Cable Robot Cable Oil and Cold Resistant Bending and Torsion Resistant






Flex-Trvvsp Cores 5*2*0.35 High-Speed Travelling Flexible Drag Chain Cable Electric Cable Robot Cable Oil and Cold Resistant Bending and Torsion Resistant
  Flex-Trvvsp Cores 5*2*0.35 High-Speed Travelling Flexible Drag Chain Cable Electric Cable Robot Cable Oil and Cold Resistant Bending and Torsion Resistant


Specification(we also accept customized cable)

Flex-Trvvsp Cores 5*2*0.35 High-Speed Travelling Flexible Drag Chain Cable Electric Cable Robot Cable Oil and Cold Resistant Bending and Torsion Resistant
Flex-Trvvsp Cores 5*2*0.35 High-Speed Travelling Flexible Drag Chain Cable Electric Cable Robot Cable Oil and Cold Resistant Bending and Torsion Resistant

Flex-Trvvsp Cores 5*2*0.35 High-Speed Travelling Flexible Drag Chain Cable Electric Cable Robot Cable Oil and Cold Resistant Bending and Torsion Resistant
Flex-Trvvsp Cores 5*2*0.35 High-Speed Travelling Flexible Drag Chain Cable Electric Cable Robot Cable Oil and Cold Resistant Bending and Torsion Resistant


Packing ways

Flex-Trvvsp Cores 5*2*0.35 High-Speed Travelling Flexible Drag Chain Cable Electric Cable Robot Cable Oil and Cold Resistant Bending and Torsion Resistant


Certificate

Flex-Trvvsp Cores 5*2*0.35 High-Speed Travelling Flexible Drag Chain Cable Electric Cable Robot Cable Oil and Cold Resistant Bending and Torsion Resistant
Flex-Trvvsp Cores 5*2*0.35 High-Speed Travelling Flexible Drag Chain Cable Electric Cable Robot Cable Oil and Cold Resistant Bending and Torsion Resistant
