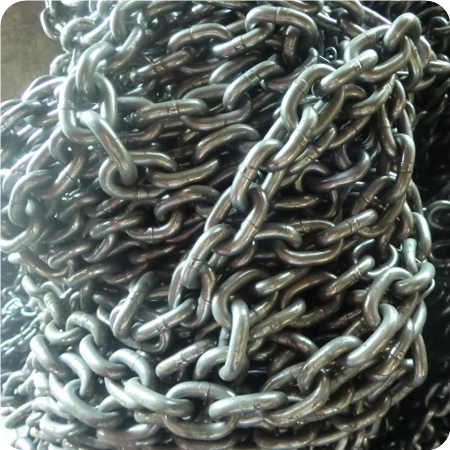

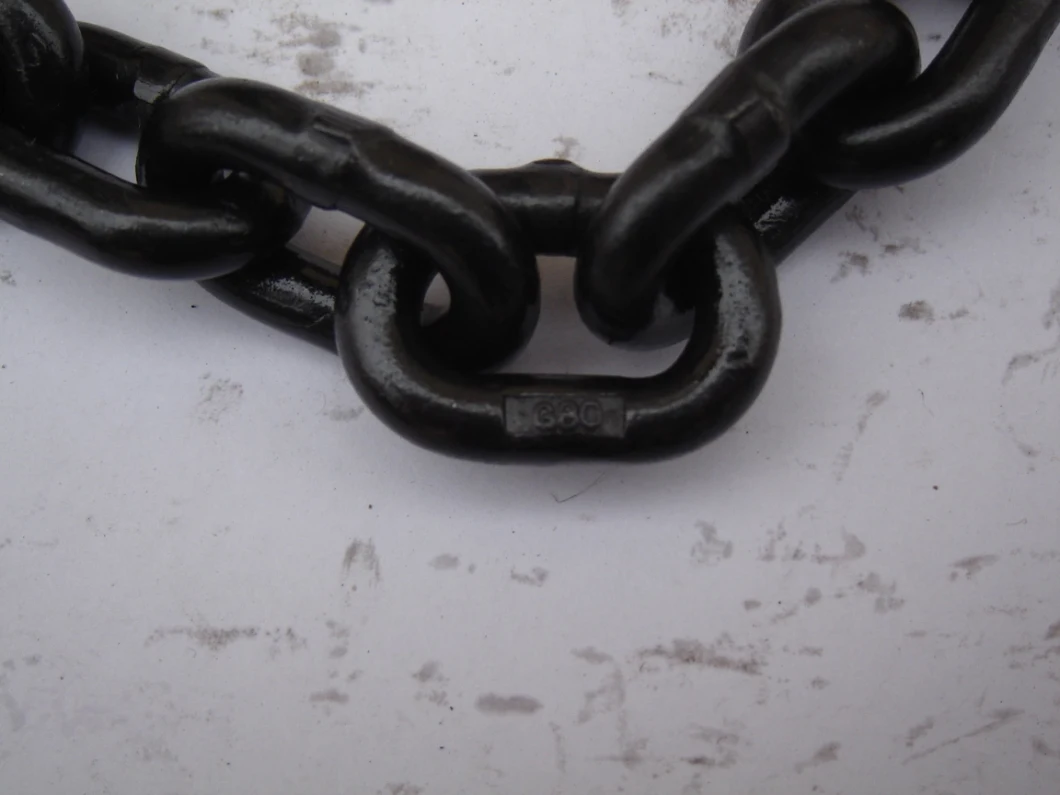

G80 High Tensile Alloy Drag Lifting Steel Link Chain
Details:
Chain Diameter ranges: 6*18, 7*21, 8*24, 10*30, 11*43, 12*36, 12.5*38, 13*39, 14*42, 14*50, 15*46, 16*48, 16*49, 16*64, 18*54, 18*64, 19*57, 20*60, 22*65, 22*66, 22*86, 24*72, 24*86, 26*78, 26*92, 30*90, 30*108, 32*96, 34*126.
Material: high quality alloy steel, 20Mn2, 20MnSi
Surface treatment: self-color polishing, black, painted, galvanized, color galvanized.
Quality grade: Grade 80
Safety factor: 4:1
Catalog:
| Specifications | Min. Width | Max. Widh | Working Load | Test Load | Minimum breaking load | Product weight |
| (mm) | (mm) | KN | ||||
| d*p(mm) | a | b | t | KN | G80 | kg/m |
| 6*18 | 7.5 | 21 | 1.1 | 27 | 45.2 | 0.79 |
| 7*21 | 9 | 24.5 | 1.5 | 37 | 61.6 | 1.07 |
| 8*24 | 10 | 28 | 2 | 48 | 80.4 | 1.38 |
| 10*30 | 12.5 | 35 | 3.2 | 76 | 125 | 2.2 |
| 11*43 | 12.6 | 36.5 | 3.8 | 92 | 154 | 2.33 |
| 12*36 | 15 | 42 | 4.6 | 109 | 181 | 3.1 |
| 12.5*38 | 15.5 | 42.2 | 4.9 | 117 | 196 | 3.3 |
| 13*39 | 16.3 | 46 | 5 | 128 | 214 | 3.8 |
| 14*42 | 18 | 49 | 6.3 | 150 | 250 | 4.13 |
| 14*50 | 17 | 48 | 6.3 | 150 | 250 | 4 |
| 15*46 | 20 | 52 | 7 | 168 | 280 | 5.17 |
| 16*48 | 20 | 56 | 8 | 192 | 320 | 5.63 |
| 16*49 | 24.5 | 59.5 | 8 | 192 | 320 | 5.71 |
| 16*64 | 23.9 | 58.9 | 8 | 192 | 320 | 5.11 |
| 18*54 | 23 | 63 | 10 | 246 | 410 | 6.85 |
| 18*64 | 21 | 60 | 10 | 246 | 410 | 6.6 |
| 19*57 | 23.7 | 63.2 | 11.3 | 270 | 450 | 7.7 |
| 20*60 | 25 | 70 | 12.5 | 300 | 450 | 8.6 |
| 22*65 | 28 | 74.2 | 15.3 | 366 | 610 | 10.7 |
| 22*66 | 28 | 77 | 15.3 | 366 | 610 | 10.2 |
| 22*86 | 26 | 74 | 15.3 | 366 | 610 | 9.5 |
| 24*72 | 32 | 82 | 18 | 432 | 720 | 12.78 |
| 24*86 | 28 | 79 | 18 | 432 | 720 | 11.6 |
| 26*78 | 35 | 91 | 21.3 | 510 | 850 | 14.87 |
| 26*92 | 30 | 86 | 21.3 | 510 | 850 | 13.7 |
| 30*90 | 38 | 105 | 28.3 | 678 | 1130 | 19.6 |
| 30*108 | 34 | 98 | 28.3 | 678 | 1130 | 18 |
| 32*96 | 40 | 106 | 32.2 | 772 | 1286 | 22.29 |
| 34*129 | 38 | 109 | 36.3 | 870 | 1450 | 22.7 |
Package:
Standard iron drum, iron pallet, gunny bag and iron box
Company Introduction
Tianjin Eastern Union I&E Co.,Ltd is one of the leading Exporters, Stockist & Suppliers for Lifting Items for the last 10 years.
It's a matter of great pleasure to inform you that we are having cordial business relation with many different fields corporations and manufacturers throughout the world. It is needless to emphasis that in view of our vast experience in the line we are in a position to meet your valued requirements of Lifting Equipment and Hand Tools and Items of every description and specifications at moderate price.
Sincerely welcome your inquiry and trail order. We are looking forwad to the firm and long-term business relationship with you.
